Overview

Retail redefined by design.

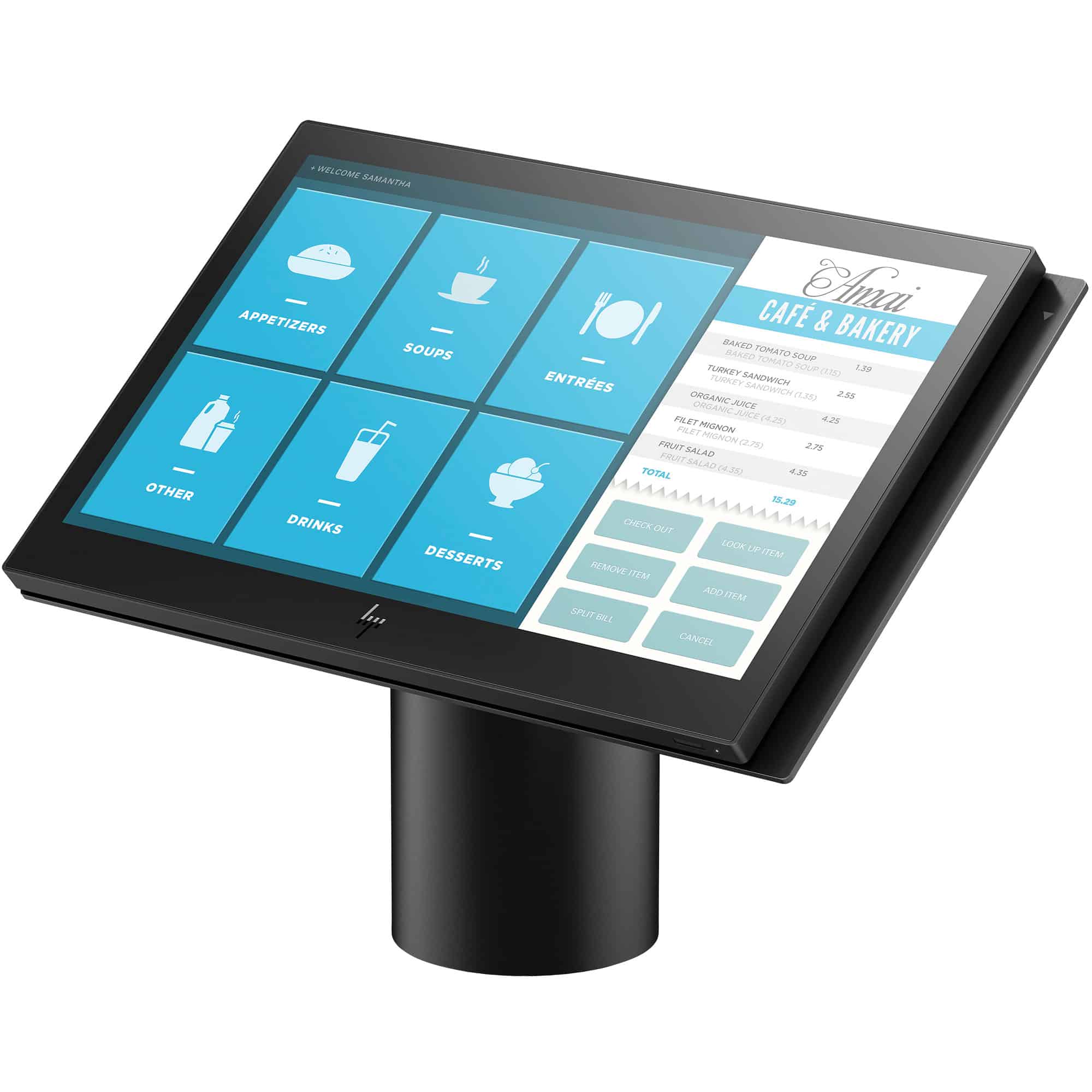

Transform your retail space with a versatile point of sale system that elevates the customer experience and supports your critical business operations. With security, durability, and flexibility built into its gorgeous design, the HP Engage One 145 AIO system marks a new era in retail.

Key Features

Sleek. Modern. Adaptable
Build the ideal checkout, interactive signage or self service solution for your retail or hospitality environment with the streamlined, versatile HP Engage One system and its accessory ecosystem, all available in a choice of colors.

Secure data. Protect customers
Today’s business calls for next level security. The HP Engage One answers with a self-healing PC BIOS and firmware that shields the BIOS against attacks to help keep your data, devices, and customers safe and secure.

Durable. Powerful. Built for the day ahead
Power through your peaks with 7th generation Intel® processors and a durable system that has a 5-year life cycle and up to a 3-year standard limited warranty. Get up to 5 years peace of mind
with optional HPCare Pack.

Technical Specifications

Operating system: Windows 10 / 11 Pro 64-Bits
Memory: 8GB DDR4 – 2400MHz SDRAM | Up to 32GB memory
Storage: 256GB PCIe® NVMe™ SSD

Graphics Processor: Integrated: Intel® HD Graphics 620
Chipset: Multi-chip package

Processor: Intel® Core™ i5-7300U (2.6 GHz base frequency, up to 3.5 GHz with Intel® Turbo Boost Technology 2.0, 3 MB cache, 2 cores)
Processor Family: 7th Generation Intel® Core™ i5 processor

Display: 14 Inch (35.56 cm) diagonal FHD anti-glare touch screen (1920 x 1080)

Audio features: Integrated HD audio with Realtek ALC3228 codec with standards internal speakers and stereo headphone jack

Integrated Webcam: No Camera

Ports: Back: 1x cash drawer connector | 1x power connector | 1x RJ-45 | 1x USB Type-C™ (charging) | 2x serial | 4x USB 3.0 | 1x Powered 24 Volt USB | 2x Powered 12 Volt USB
Side: 1x headset connector

Drive Bays: One M.2

Expansion slots: 1 M.2

Wireless: Realtek 802.11a/b/g/n/ac (1×1) Wi-Fi® and Bluetooth® 4.2 wireless card
Wired Protocol: Broadcom BCM943228Z 802.11n wireless M.2 with Bluetooth®; Realtek RTL8153

AC Adapter: Input: 200 W 89% efficient, wide-ranging, active PFC

Environmental: Operating temperature: 10 to 40°C | Operating humidity: 20 to 85% RH

Software: None

Security management: Credential guard and password protection | Device guard | HP BIOSphere with SureStart Gen 3 | HP FingerPrint Sensor | Power-on password (via BIOS) | Setup password (via BIOS) | Trusted Platform Module TPM 2.0 Embedded Security Chip | USB enable/disable (via BIOS) | VESA mounting

Magnetic stripe reader: HP Retail Integrated Dual-Head MSR; Optional integrated magnetic stripe reader; Single-head, bi-directional, and encryption capable

Product Type: HP Engage One Pro AIO System
Color: Ebony black

Dimensions (W x D x H): 33.62 cm x 21.64 cm x 1.76 cm (head unit) | 9.6 cm x 9.6 cm x 26 cm (stand with column printer) | 28.4 cm x 16.2 cm x 2.92 cm (connectivity base)
Weight: 1.33 kg (rotate stand) | 1.09 kg (fixed stand) | 1.38 kg (head unit) | 0.56 kg (connectivity base) | 1.94 kg (printer)
