The Amazing Performance of Thunderbolt 2
Capable of an astounding 20 Gbps of throughput, the OWC Thunderbolt 2 Dock utilizes this phenomenal bandwidth to eliminate data bottlenecks, and effortlessly supports direct connection of up to ten devices, as well as daisy-chaining five additional Thunderbolt devices.

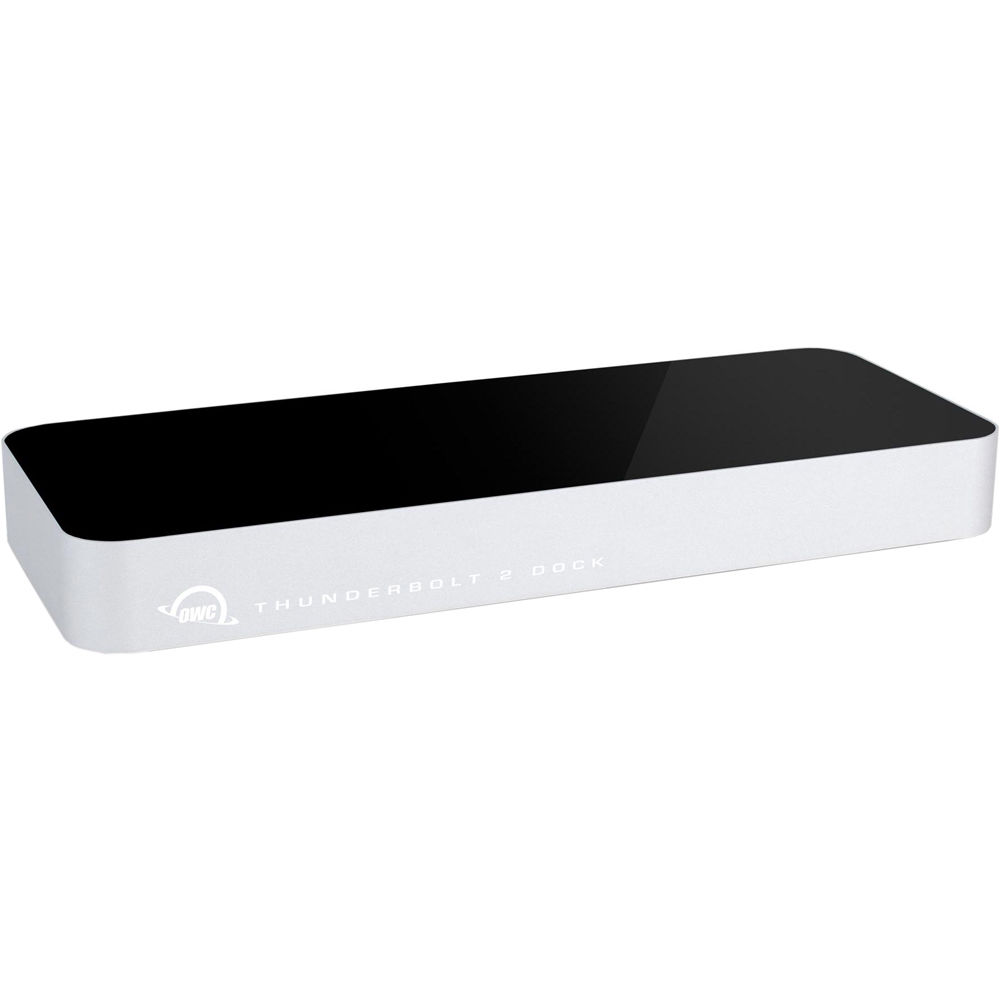

Finally, a Thunderbolt Dock Done Right
12 Ports of phenomenal flexibility, all united to your Mac with just one lightning-fast Thunderbolt 2 cable. OWC Thunderbolt 2 Dock is the new foundation for your perfect workspace. Awesome performance meets incredible connectivity, the OWC Thunderbolt 2 Dock offers the ultimate in convenience and flexibility to streamline any workflow. With just one Thunderbolt cable, connect up to five USB 3.0 devices, Gigabit Ethernet, a FireWire device, HDMI, audio in, and audio out.
Everything You Need in a Dock. And More.
The OWC Thunderbolt 2 Dock is the unmatched expansion platform for your Thunderbolt-equipped Mac, with exceptional connectivity, and dependable performance. Whether adding USB 3.0 to an older Mac, Gigabit Ethernet to a newer MacBook Pro, or ensuring backwards compatibility with your existing FireWire 800 peripherals, the Thunderbolt 2 Dock keeps you connected.
*Dual monitor support requires the use of at least one Thunderbolt display. If you connect a display to the HDMI port, then the only display that will work through the Thunderbolt port is a Thunderbolt display. If you are not using the HDMI port, then you can use a Mini Display Port cable or adapter to connect a display to the Thunderbolt port.
Connect More Displays
Configure the ultimate display setup to meet the needs of your workflow. Add a dazzling ultra HD 4K display, two high definition displays, or one 4K display and one high definition display. Even connect a VGA, DVI, or DisplayPort monitor utilizing the Thunderbolt 2 Dock’s built-in HDMI and Thunderbolt ports.*
More Power to Work
The Thunderbolt 2 Dock’s side-mounted, high-powered USB 3.0 ports provide up to 1.5 amps of power and are perfect for charging iPhone, iPad, tablets, smartphones, and other USB-charged devices, as well as powering bus-powered hard drives, SSDs, or optical drives.
Technical Specifications
Display Support: Up to one 4K display @ 60Hz and one 4K display @ 30Hz
Display Support by Port:
DisplayPort 1.2: Up to 4K @ 60Hz
HDMI 1.4b: Up to 4K @ 30Hz
Device Ports: 2x Thunderbolt 2 Ports | 5x USB 3.0 Ports | 1x FireWire 800 Port | 1x HDMI Port | 1x Gigabit Ethernet (GbE) RJ-45 Port | 1x 3.5mm Mono Audio Input Port | 1x 3.5mm Stereo Audio Output Port
Mac OS Compatibility: OS X 10.9 Mavericks | OS X 10.10 Yosemite | OS X 10.11 El Capitan | macOS 10.12 Sierra
PC OS Compatibility: Not compatible with Windows PCs
AC Input: 100-240V, 50-60Hz
DC Output: +12V, 6A
Power Supply: Universal auto-switching power supply
Security Slot: No
Housing Color: Aluminum / Black
Housing Material: Aluminum / Polycarbonate
Dimensions (WxLxH): 23.0 cm x 9.0 cm x 2.5 cm
Weight: 380.0 g (0.84 lbs)
